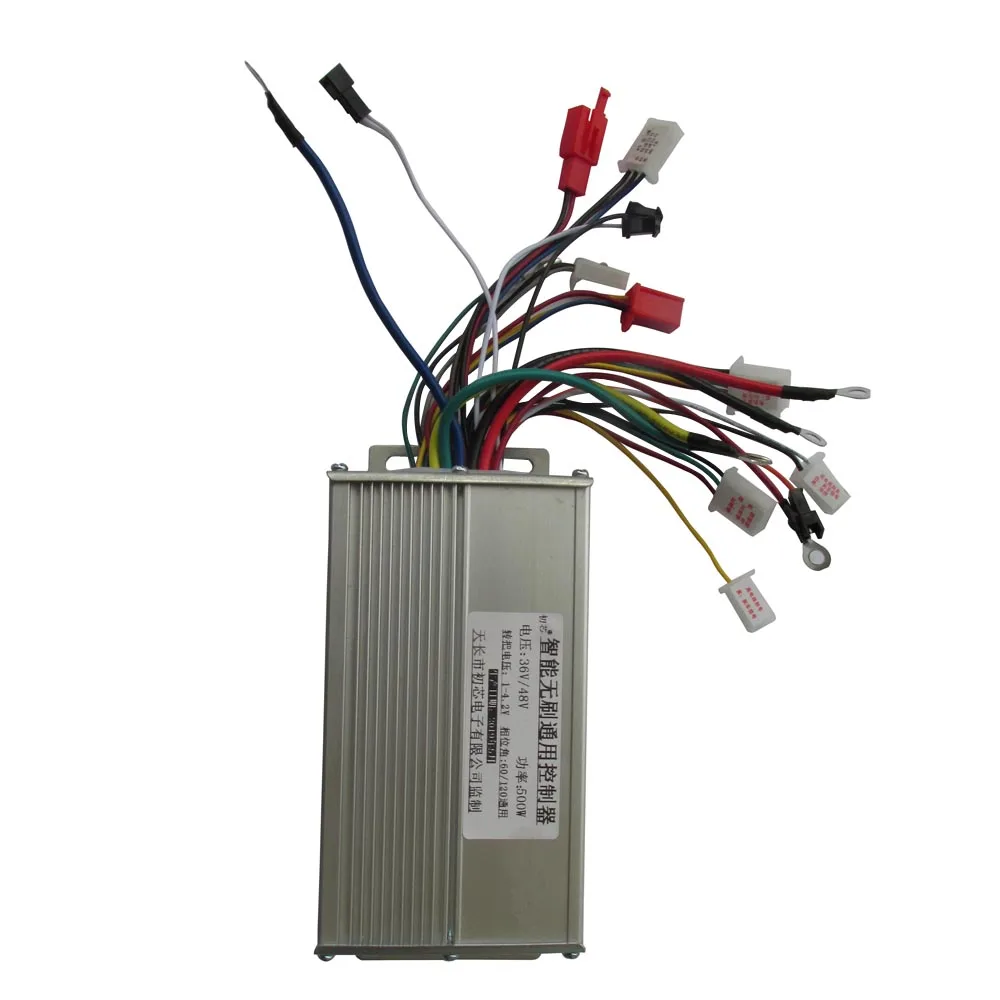

36V/48V 350W Electric Bicycle Controller/ebike controller for e-bike scooter dual mode brushless hall sensor/sensorless

by GetLow - 8:06 PM

Type Controller

Controller type dual mode brushless controller

Voltage 36V-48V all can fit

Rated power 350W

Rated current 18A

Hall sensor can use

hall sensorless can use

Use electric bike,electric scooter,e-bike,tricycle

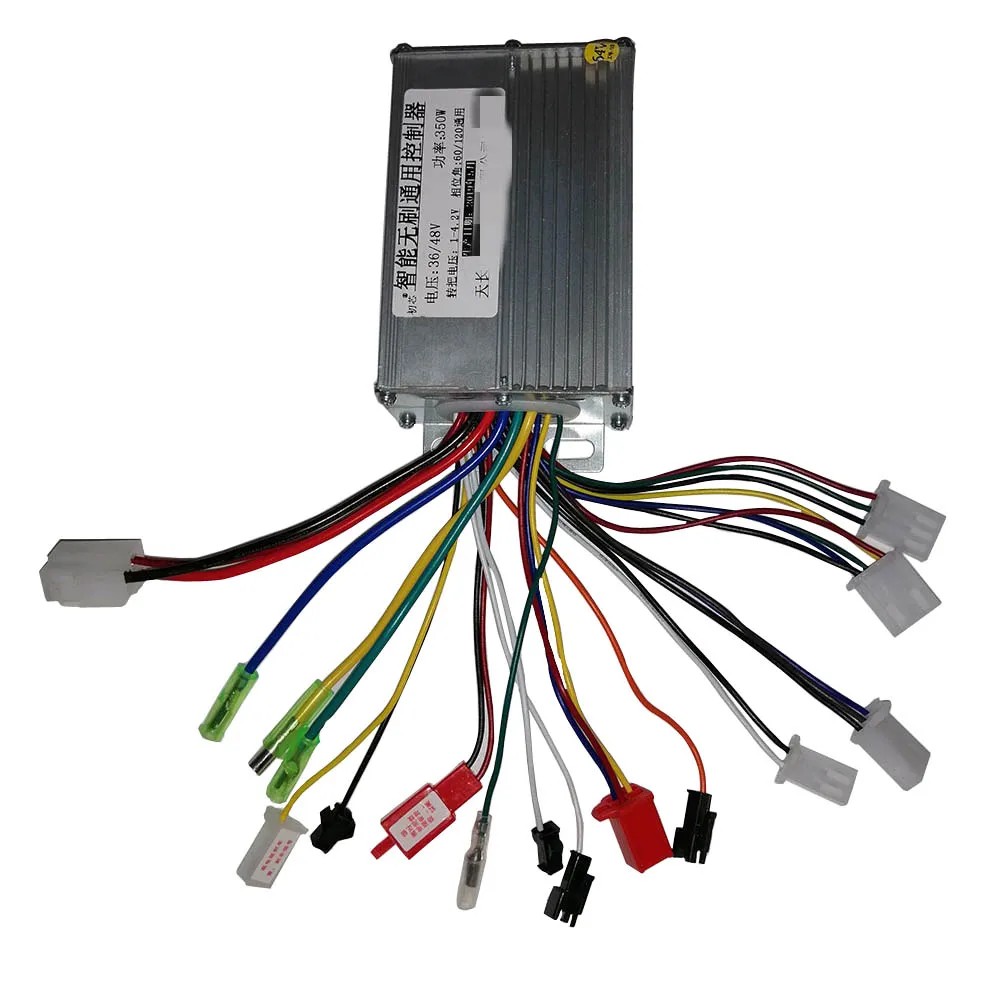

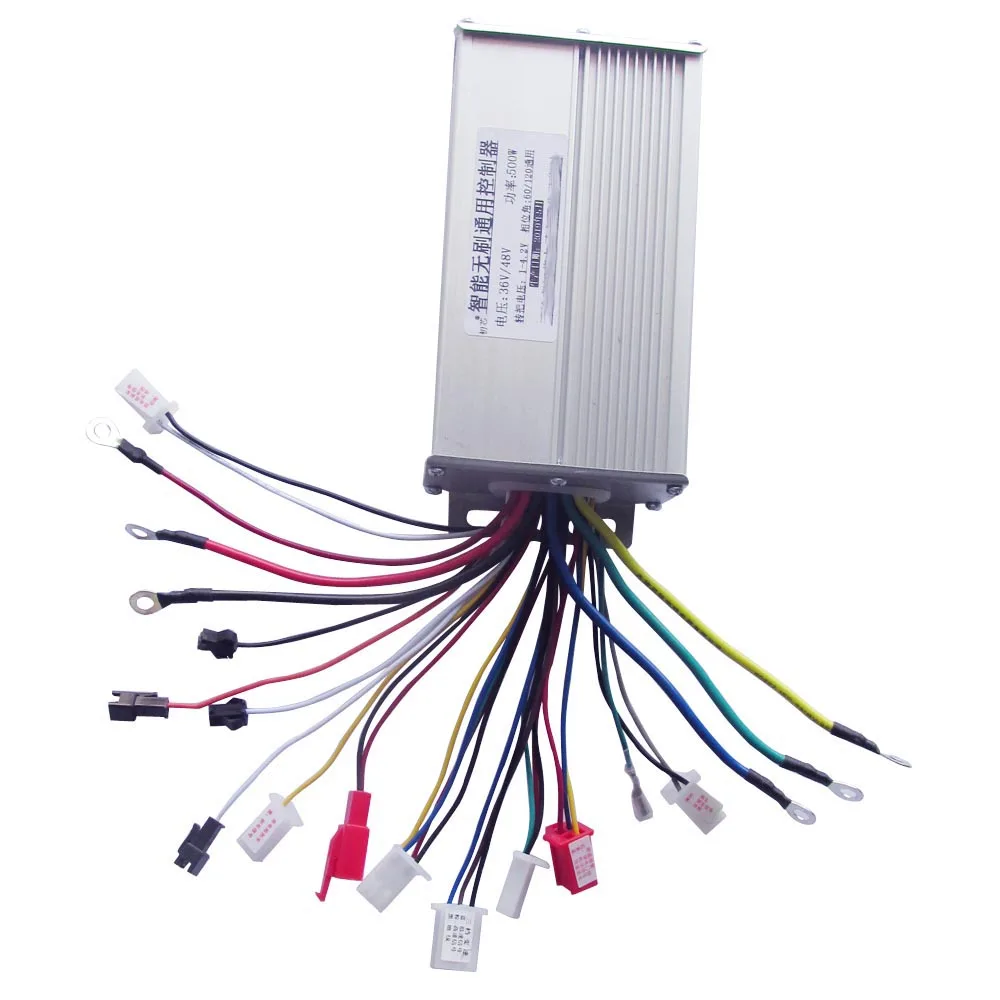

36V/48V 350W 18A ebike controller Electric Bike Tricycle controller ebike Controller scooter controller EbikeNote: The actual product received by the buyer shall prevail, because the appearance of different batches of products has color error, but the function is the same, please don't mind.36V-48V 350W controller can work with hall sensor/hall sensorlessRated Voltage: 36V/48VLow Voltage : 31V/42V±0.5VRated Power: 350W Limit Current: 18A36V-48V 350W controller function1. electric lock line2. battery line(red+, black-)3. motor line4. high brake line(if not have this function, not need connect)5. Cruise speed line6. Anti-theft power line(if not have this function, not need connect)7. instrumentation line(if not have this function, not need connect)8. self-learning line9. Anti-theft alarm line(if not have this function, not need connect)10. Cruise speed line(if not have this function, not need connect)11. low brake12. 3-speed line13. hall line14. throttle line.connect the motor line (color to color）. connect the battery line(red:+ , black:-). connect the controller throttle line, electric lock（if throttle not haveelectric lock, connect controller electric lock to battery+ ）. connect the hall line(if motor without hall line, don’t need connect).docking the two self-learning lines, the wheel will forward or reverse.(1.if wheel forward ,Separate the self-learning line.2.if wheel reverse, Separate the self-learning line. Docking the self-learning line againif wheel forward ,Separate the self-learning line.).other functions can be connected as needed.
